NOL-0160 / NOL-0260
Nittoku has developed a new machine to wind small outslot stator cores. There will be two models available, the NOL-0260 and the NOL-0160, depending on the customer`s specifications. Please inquire with our sales engineers for the model that will fit your application.
KAI-0160 / KAI-0160H / KAI-0260Y
The KAI series coil winding machine has been developed for direct nozzle winding of inside slot stators for small motors.

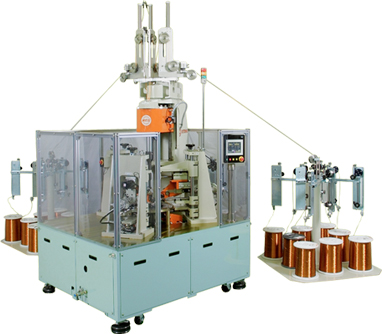

Model HIM-03 has been developed for inside slot stator winding with a new technology "Hook Winding" which uses outward fingers to slide wires through stator slots instead of nozzles passing in the slot. The "hook" finger tool with NC control also allows for precision winding.
CIT-0150-S / CIT-0150-M / CIT-0150-L
High productivity, due to 3-nozzle synchronized winding for 3-phase motors.
Numerically controlled, synchronized 3-nozzle traverse.
Due to the servo-driven nozzle traverse, stroke change and core indexing, high slot fill is possible.
High speed and minimized sound, due to a newly-developed mechanism to reduce vibration.
High accuracy and durability.
TOM-0150H is capable of direct multi-wire concentrated winding instead of single heavy wire (over 1.5mm OD).
High slot fill is expected by untwisting wire during winding cycle. This newly developed process can achieve high motor output without changing stator OD.
Lower coil-end by direct winding. This can reduce the size the motor.
Save material cost.
